Hydraulic power units and lubrication

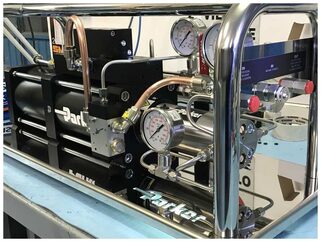

NITROGEN BOOSTER

Parker Olaer nitrogen booster for increasing gas pressure in industrial charging and filling operations. Air-driven and designed for high-pressure nitrogen applications, it provides controlled pressure multiplication with low operating temperatures and integrated safety solutions.

Gas: Nitrogen - Pressurized air supply
Max pressure: S 340 bar - PRO 800 bar
Working air pressure: 5-14 bar
Minimum suction nitrogen pressure: 5 bar
Compression ratio: S 40/1 - PRO 64/1
Dimension: 67x26x18 cm
Construction: Frame and high pressure fittings Stainless steel

MAIN FEATURES

air-driven pressure multiplier for nitrogen applications
double single-acting booster design for effective use of compressed air
suitable for high-pressure gas charging and filling operations
cooling system based on air expansion before exhaust
low operating temperature, even during prolonged working cycles
physical separation between drive air and high-pressure gas circuit
safety devices designed to protect the operator in case of pressure peaks or gas leakage
overpressure vent holes for controlled gas discharge or seal wear detection
high-pressure fittings and frame in stainless steel
suitable for use with nitrogen; oxygen, helium and argon applications are indicated in the technical manual
designed for professional use by trained operators
maintenance operations restricted to qualified and authorized personnel

Download product detail >>.
