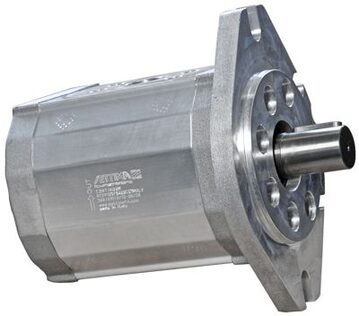

Screw pumps 250 bar Type CONTINUUM

Helical rotor pump completely silent in the world invented, patented and produced by Settima Meccanica. Continuum® represents the silent alternative to standard and vane gear pumps. It is ideal for high pressure applications.
The special profile of the rotors avoids the encapsulation of the oil. low noise on average 15dB (A) less noisy than standard geared and vane pumps. Extremely low vibrations and pulsations. High efficiency for a wide speed range (up to 6,500 RPM). Maximum operating pressure up to 300 bar. From 2.0 to 300cc. Ideal for replacing standard gear pumps (compatible without system modifications).

: Screw pumps 250 bar Type CONTINUUM

PRODUCT DESCRIPTION

Flow rates: 4 ... 220 cm3 - 6 ... 330L / min (at 1,500 rpm)
Operating pressure: Continuous Max: 275 bar Depending on the model
Max. ON / OFF cycle: 280 bar Depending on the model
Max. Peak: 300 bar Depending on the model
Suction pressure: 0.8 - 3 bar (depending on the model)
Viscosity: Permitted 5 ... 800 cSt, recommended 32 ... 150 cSt,
Start-up conditions: up to 3,000 cSt
Temperatures: Environment -15 ... + 60 ° C, Oil -15 ... + 80 ° C (standard)
Working temperature: Neoprene gaskets from -35 ° C to + 90 ° C
Silicone gaskets from -60 ° C to + 180 ° C
Filtration: 25 to 10 µm (for high effort work over 150 bar
IP category: IP66 and IP68 (50 meters - 7 days), Type 4X
Materials: Aluminum, Brass or Stainless Steel
Finish: Electrolytic nickel
For complete specifications, consult the PDF data sheet
